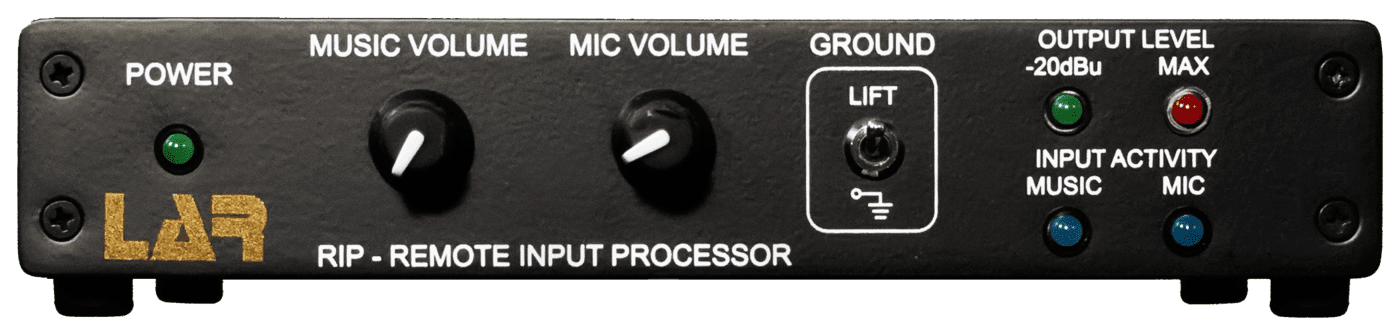

LAR-RIP
The same, easy to use, interface and processing from our amplified models - now in a remote form factor.
Allow customers and event staff to play audio from their devices on the house audio system without fear of damage or "bad sound".
The RIP isolates and protects your house sound system from unknown equipment while still allowing outside vendors and customers a way to incorporate audio from their devices.
Documentation:
To download, right click on a link below and select save as… Or just click to view, then “back” to return to this page.
I/O Specifications Note: 0dBu = 0.775Vrms or 1.1Vpeak | |
Unbalanced Line Level Input | |
Input Impedance | 10K Ohms – Per Leg |
Throughput Voltage Gain | +5dB, Adjustable to +14.5dB |
Balanced Line Level Inputs | |
Input Impedance | 20k Ohms – Unbalanced Per Leg |
Throughput Voltage Gain | -1dB, Adjustable to +8.5dB |
3.5mm Auxiliary Input | |
Input Impedance | 10K Ohms – Per Leg |
Throughput Voltage Gain | Fixed at +13.6dB |
Lo-Z Microphone Input | |
Input Impedance | 1K Ohms – Per Leg |
Throughput Voltage Gain | +24.5dB / +51.5dB, Switchable |
Output Stage Specifications – Measured with 600Ω Load Across Ouput | |
+/- 3dB Frequency Response | 6Hz to 95kHz |
Output Insertion Loss @ 1kHz | 2.5dB |
Output Clip Limiter Information | |
Compressor Topology | VCA Based Peak Sensing Feedback Style |
Maximum Allowable Output Level | -22dBu to +2.7dBu, Adjustable |
Compression Ratio | ~ 20:1 |
